LVM Configuration in Ubuntu 8.10
Creating a Physical Volume (PV)

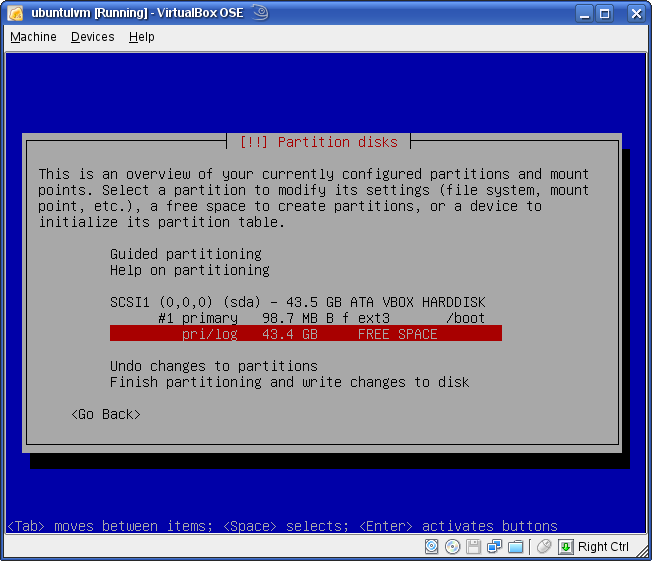

A Physical volume is the first major component of LVM, and can be created from a disk partition or a full disk drive. To create the PV for this configuration, we are going to use the unallocated disk space. With the free disk space selected as shown, hit enter.

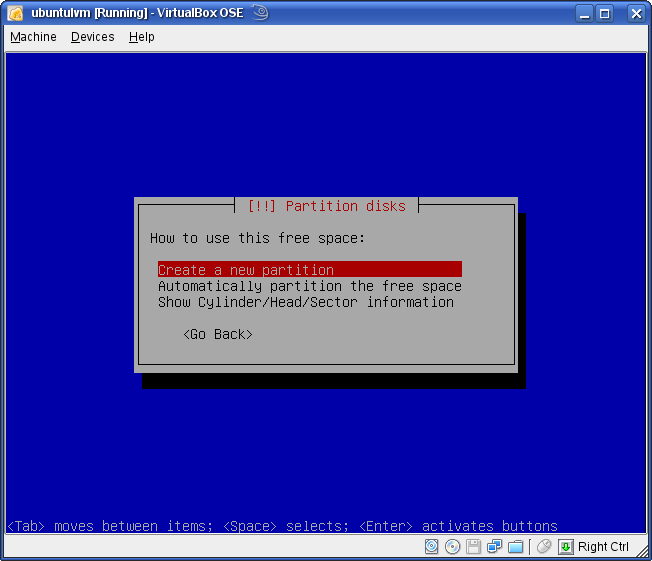

Of course, we want to create a new partition. Enter.

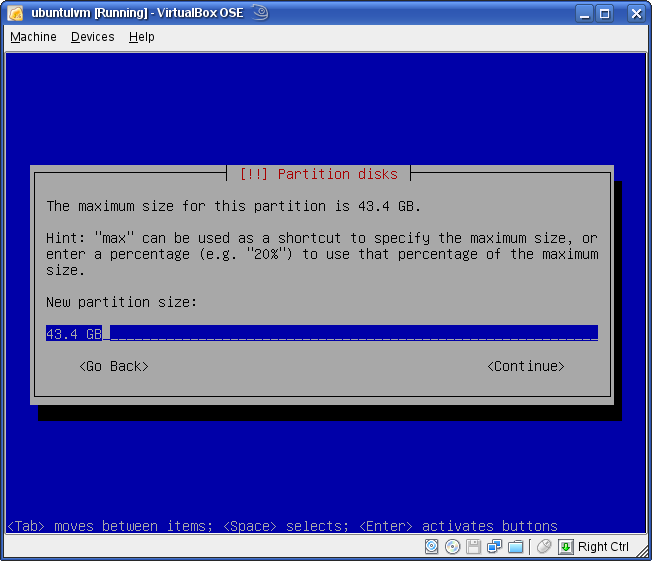

The size of the new partition will be the unallocated space on the hard drive. Our test drive is only about 44 GB, and 150 MB of that has been used to create the primary partition for /boot. If you are using a recently purchased PC, your drive’s size would likely be about 250 GB. The installer will automatically show the unallocated free space. Enter

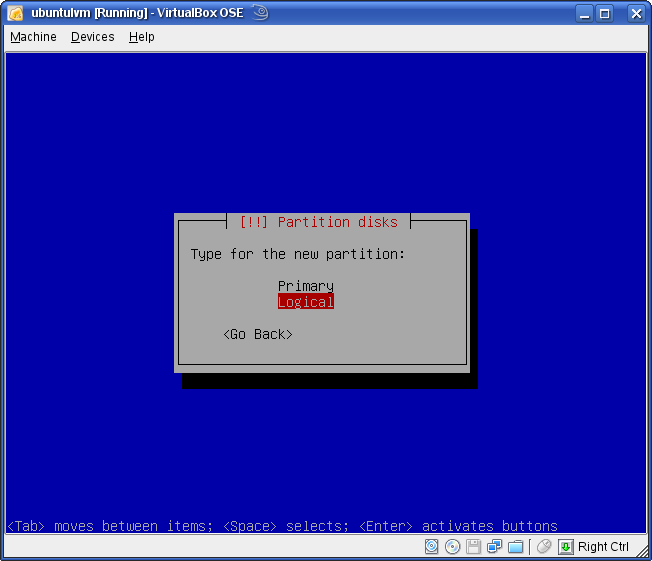

When creating a PV, most distros choose “logical” here. Enter.

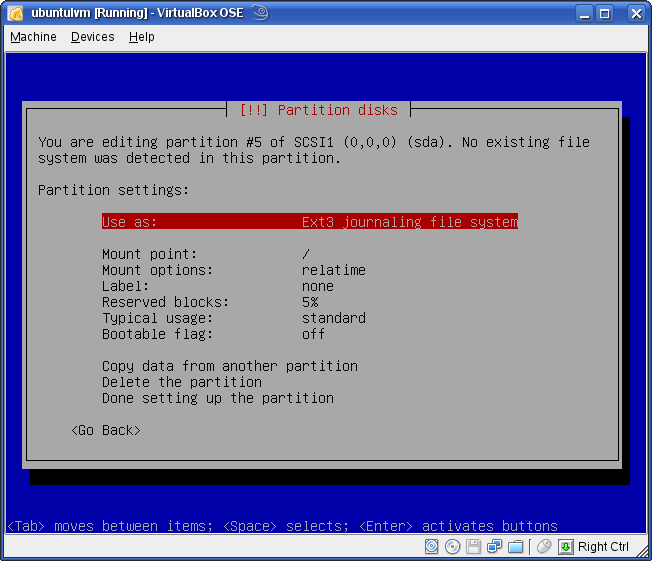

For the new partition that we just created, we want to tell the installer what to use it for. So with “Use as” selected, hit Enter.

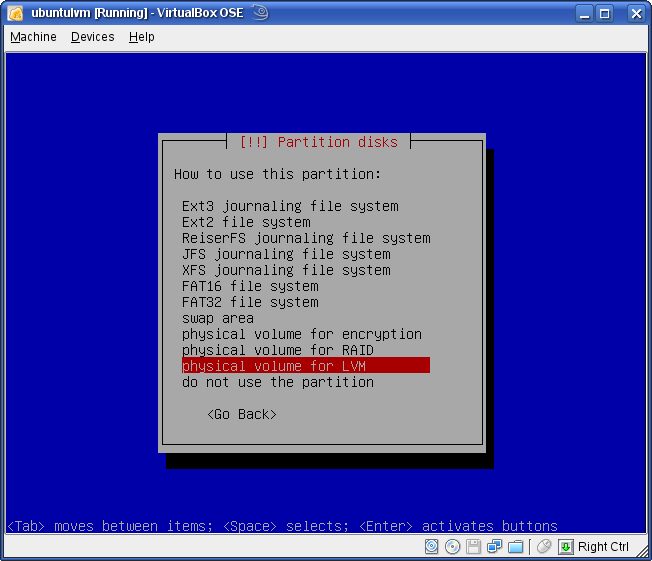

The options here are many, but we know we want to create a PV without encryption. Make the choice as shown in the image. Enter

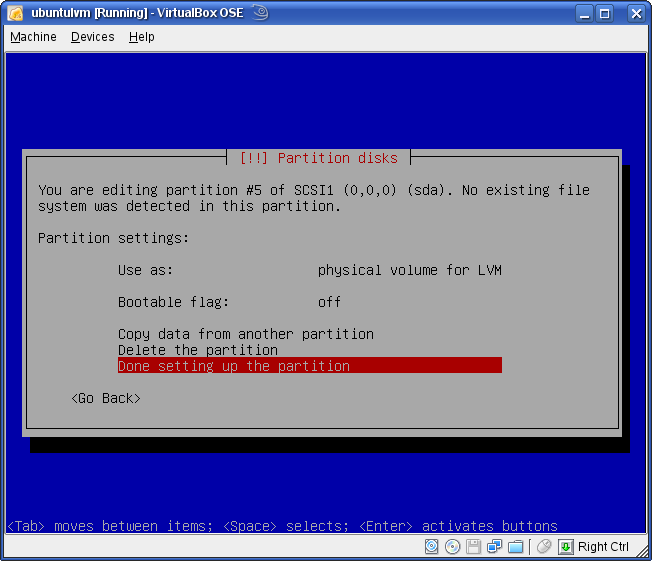

That brings us to this screenshot. Scroll down to “Done setting up the partition”. Enter.

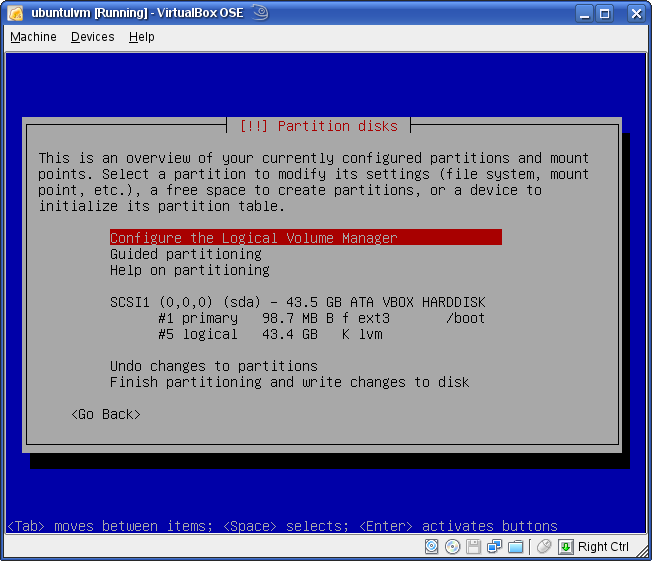

Now that we are done creating a PV, the next windown you see should look like the one below. The next step is to configure the Logical Volume Manager. Make sure that option is selected. Enter

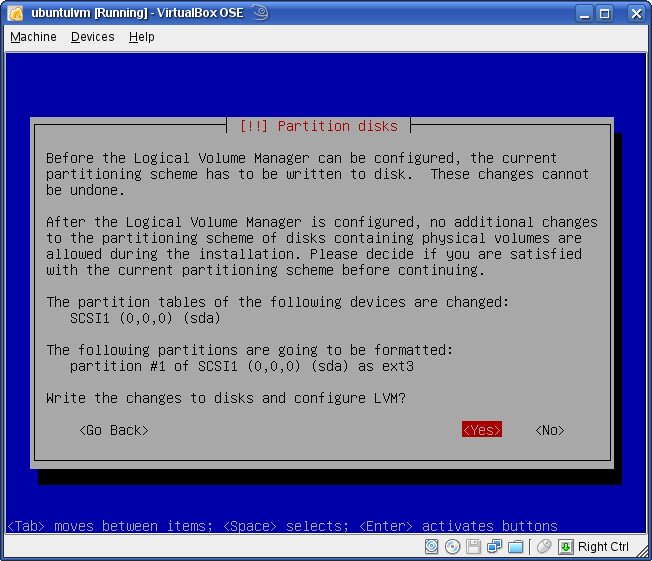

The default here is “No”. Selected “Yes”. Enter.
That’s it for creating a PV. The next step is to create a Volume Group (VG).
